• 01
• Machine Type

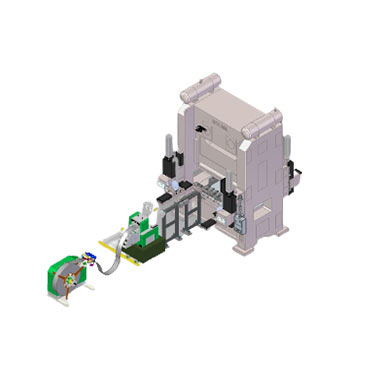

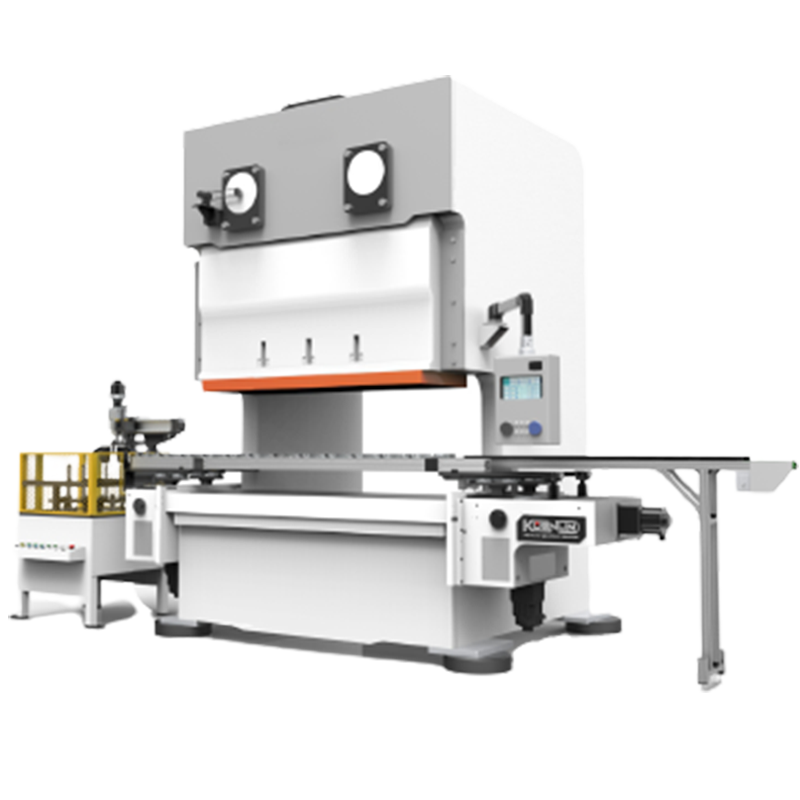

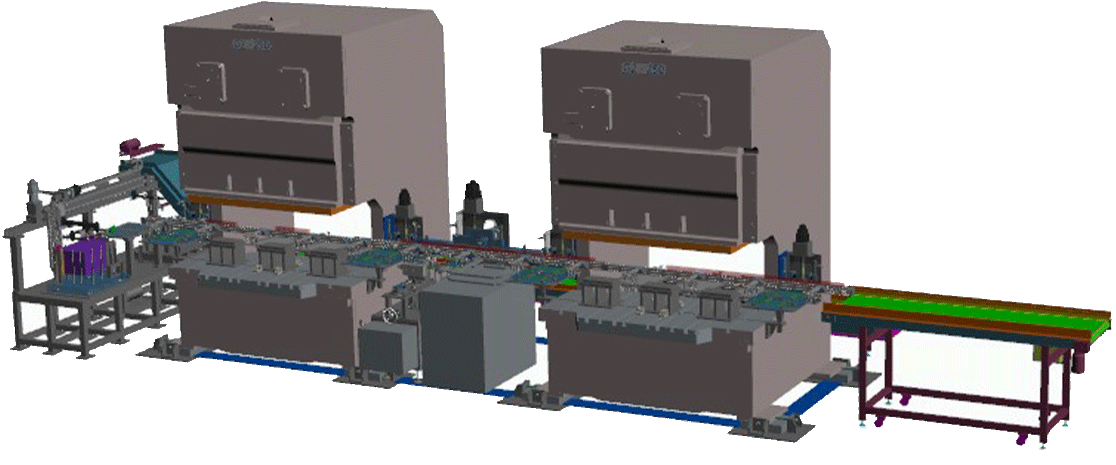

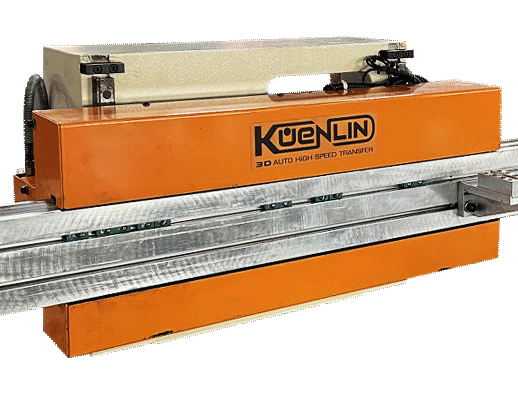

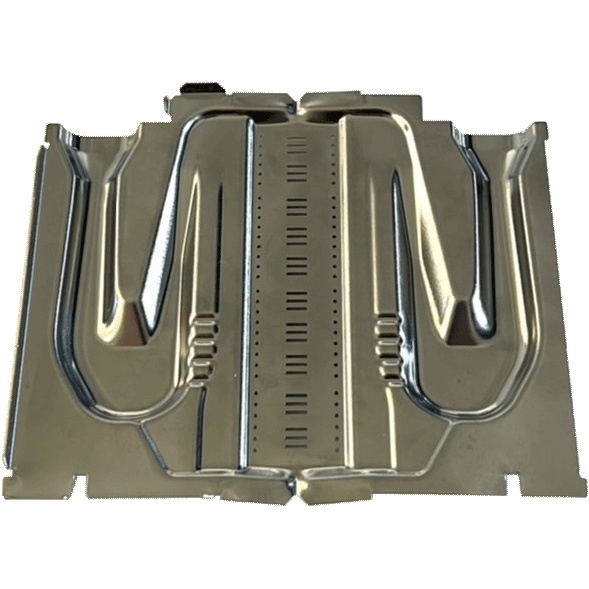

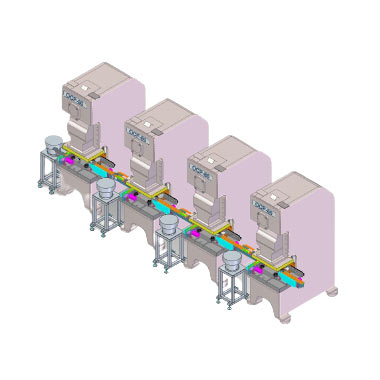

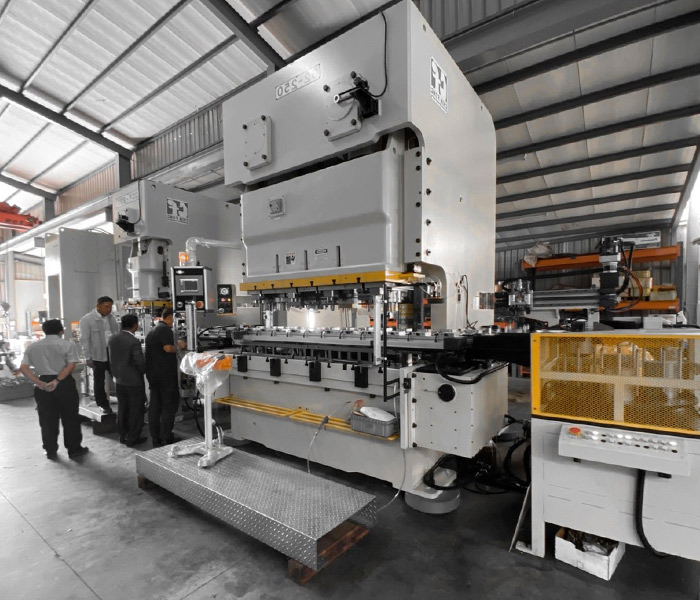

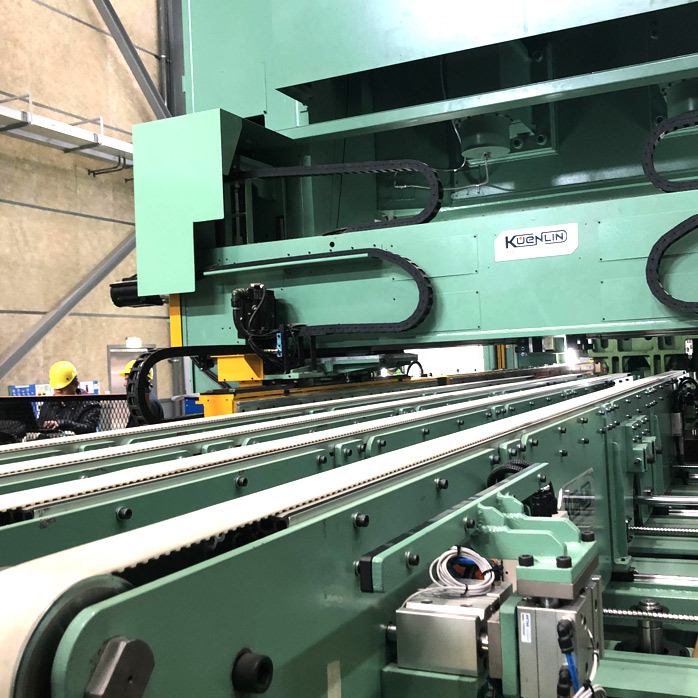

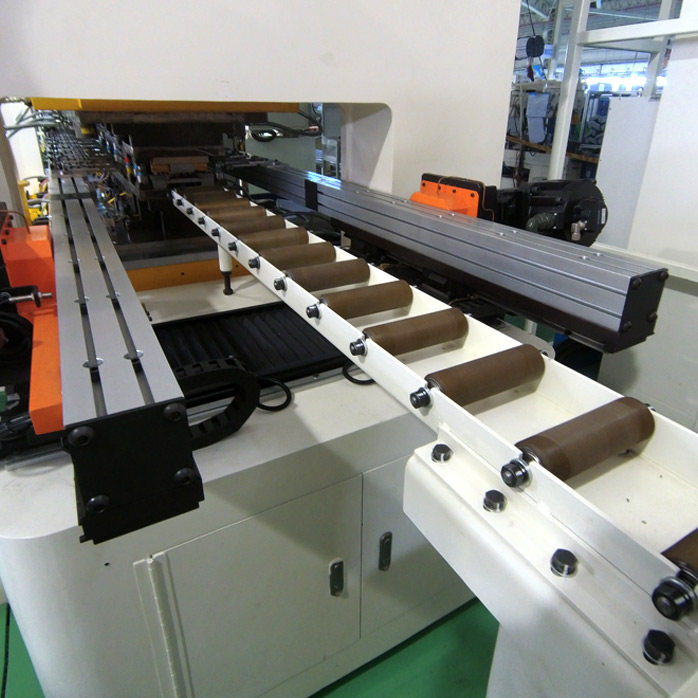

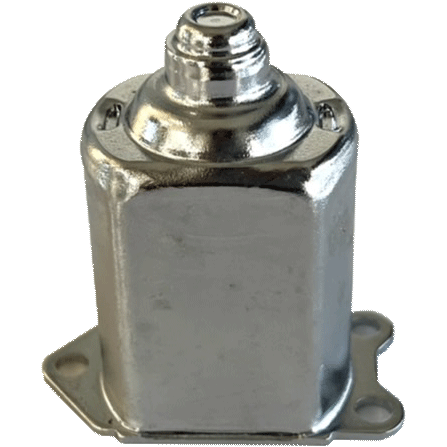

• Dual Rails Walking Beam Transfer

• 02
• Type

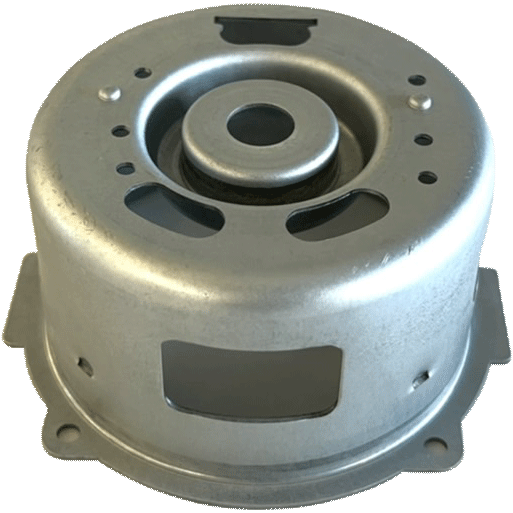

• KSV-3-250-150-50

• 03
• Qty
• 1
• pcs

• 04
• Feed Stroke (x)
• 0-250

• 05
• Clamping Stroke (Y)
• 0-150
• mm

• 06
• Lift Stroke (Z)
• 0-50
• mm

• 07
• Distance between rails (Clamping)
• Min 350
• mm

• 08
• Distance between rails (Unclamping)
• Max 650
• mm

• 09
• Max move range (Including rails)
• Max 650
• mm

• 10
• Feeding Line Height (From bolster)
• 284 (TBD)
• mm

• 11

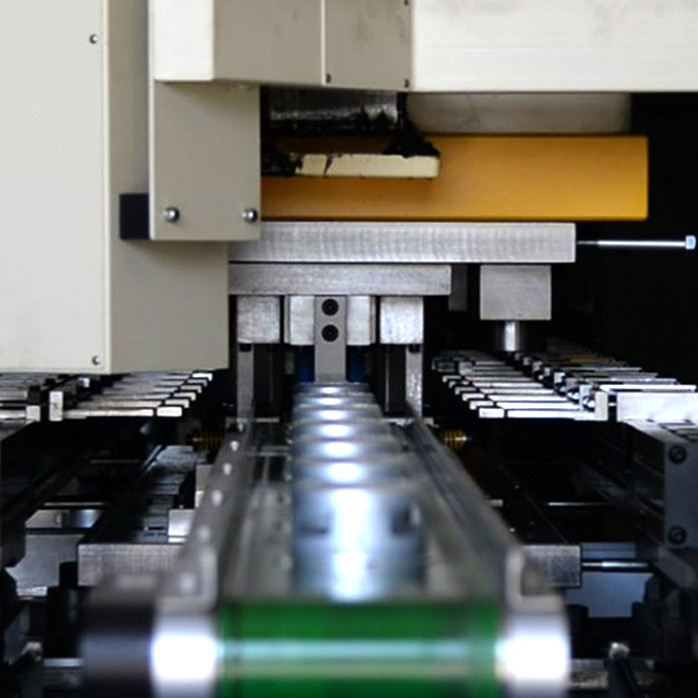

• Feed bar section (W*H)
• 100*100
• mm

• 12
• Weight loading (for grippers & working piece)
• 50
• mm

• 13

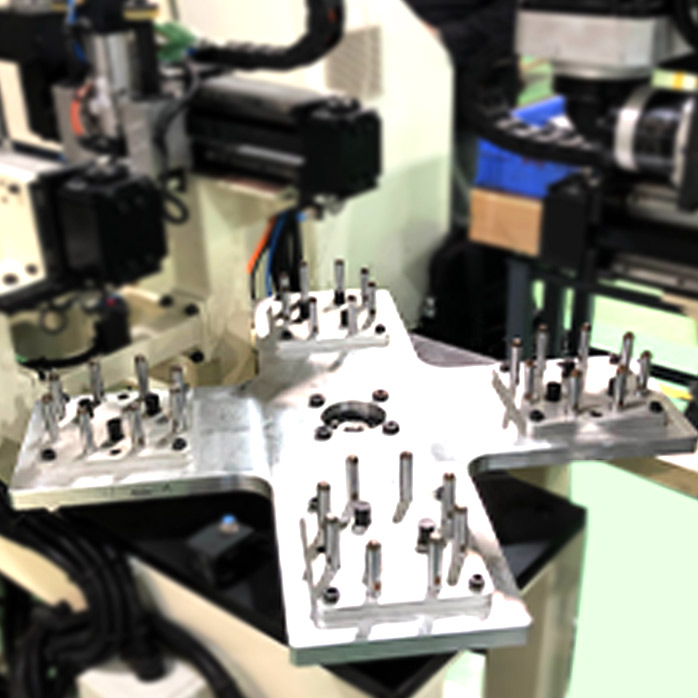

• Grippers
• 9
• kg

• 14
• Misfeed sensors
• 9
• pcs

• 15
• Feed bar integration
• Manually
• pcs

• 16
• Feed direction
• Left to Right

• 17
• Operation Mode (with press)
• Jog/1 cycle/ Continue

• 18
• Transfer Motion
• 3-axis

• 19
• Transfer Motion 2-axis/3-axis @ 250 x-stroke
• 35 (without die loading)
• motion

• Produce Speed
• Max 25 (TBD by tool design)
• spm

• 20
• Servo Motor Brand2-axis/3-axis @ 250 x-stroke
• YASKAWA
• ppm

• 21
• IPC Controller
• BECHOFF

• 22
• HMI Brand
• PROFACE

• 23
• Encoder (Crank Shift)
• Sick Absolute encoder

• 24
• Parameters Storage
• 100

• 25
• Blank Feeding
• De-stacker & Pusher unit
• sets
