AT125R

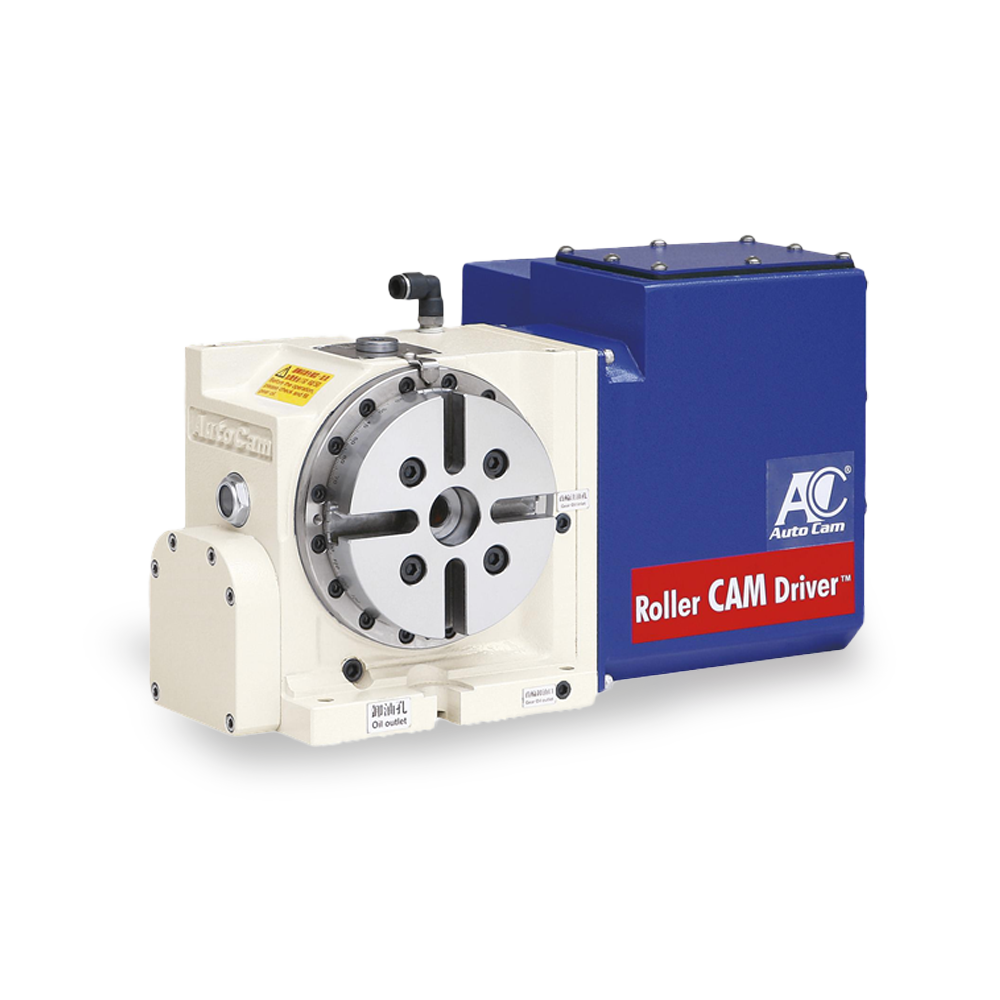

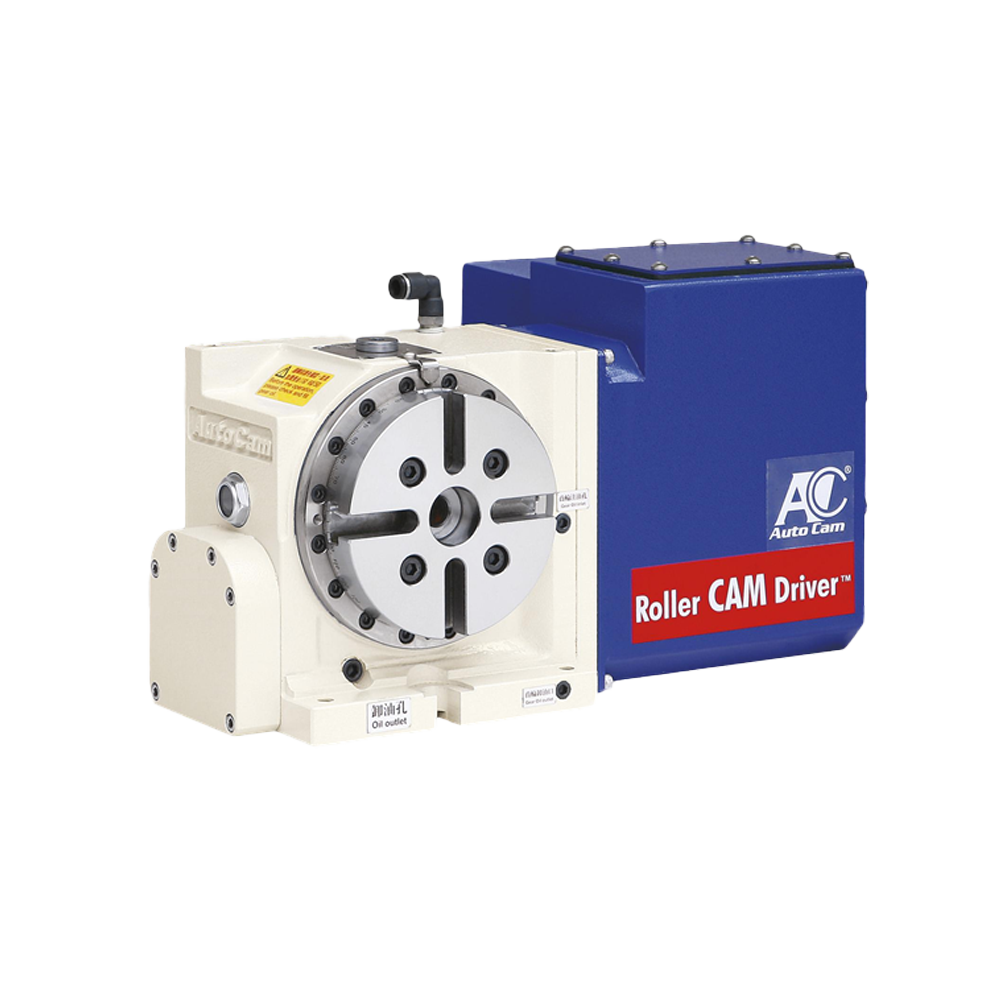

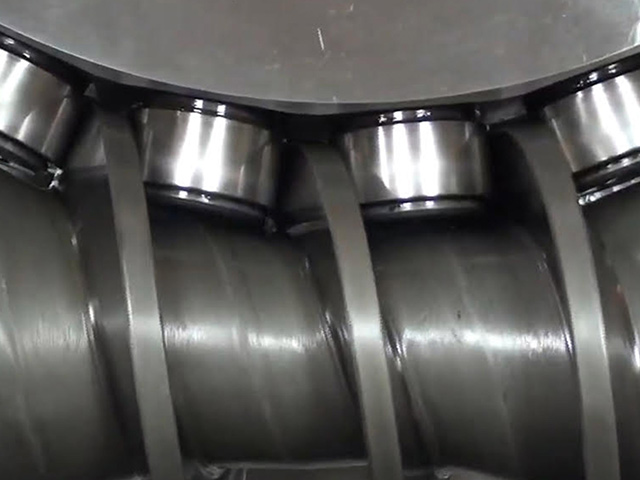

Non-Backlash Roller CAM Driver CNC Rotary Table
- Description
- Rotary Table
- Product ID
- 107Z
- Table Diameter
- ø125 mm
- Servo Motor
- 0.75 Kw
- Max. Rotation
- 100 RPM
- Center Height
- 110 mm
- Clamp System
- 5 kg/cm²
- Clamping Torque
- 8 kg•m
Specification
| Code No. | AT125R AT125L |
AT160R ATI60L |
AT200R AT200L |
||||
|---|---|---|---|---|---|---|---|
Table diameter∅ mm |
125 | 170 | 200 | ||||
Center height mm |
no | 135 | 160 | ||||
Spindle hole∅ mm |
30H7/15 | 60H7/45 | 60H7/45 | ||||
T slot widthmm |
12H7 | 12H7 | 12H7 | ||||
Guide block widthmm |
14H7 | 14H7 | 18H7 | ||||
| Motor | FANUC | α | α2iF | α4iF | α4iF | ||
| β | β4is | β8is | β8is | ||||
| MITSUBISHI | HG75 | HG54/HG104 | HG104 | ||||
| SIEMENS | 1FK7042/ 1FK2205 | 1FK7060/ 1FK7042/ 1FK2205 | 1FK7060/ 1FK2206 | ||||
| Gear ratio | 30 | 36 | 36 | ||||
| Max. rotation speed （註Note） rpm | 100 | 83.3 | 83.3 | ||||
| Min. increment | 0.001° | 0.001° | 0.001° | ||||
Basic dynamic load ratingkgf・m |
17 | 26 | 26 | ||||
Clamp system （空 P: Pneumatic / 油 H: Hydraulic） kg/cm² |
（空P） 5 |
（空P） 5 |
（油H） 20 |
（空P） 5 |
（油H） 20 |
||
| Output torque at brake | kgf・m | 8 | 13 | 40 | 13 | 40 | |
| N-m | 78 | 127 | 392 | 127 | 392 | ||
Indexing accuracy sec |
40 | 20 | 20 | ||||
Repeatabilitysec |
4 | 4 | 4 | ||||
Weightkg |
32 | 55 | 65 | ||||
| Allowable work weight |  (Allowable work kg weight with tailstock) kg |
25 (50) | 100 (200) | 100 (200) | |||
 kg |
50 | 200 | 200 | ||||
| Allowable load (When table clamped) |  kgf |
600 | 800 | 800 | |||
 FxLKgf-m |
8 | 13 | 42 | 13 | 42 | ||
 FxLKgf-m |
16 | 200 | 200 | ||||
- Code No.
- AT125R
AT125L
-
Table diameter∅ mm
- 125
-
Center height mm
- no
-
Spindle hole∅ mm
- 30H7/15
-
T slot widthmm
- 12H7
-
Guide block widthmm
- 14H7
- Allowable work weight
-
FANUCα
- α2iF
-
FANUCβ
- β4is
- MITSUBISHI
- HG75
- SIEMENS
- 1FK7042/ 1FK2205
- Gear ratio
- 30
- Max. rotation speed
（註Note）rpm - 100
- Min. increment
- 0.001°
-
Basic dynamic load rating kg・m
- 17
-
Clamp system
（空 P: Pneumatic / 油 H: Hydraulic）kg/cm² - （空P）
5
-
Output torque at brakekgf・m
- 8
-
Output torque at brakeN-m
- 78
-
Indexing accuracysec
- 40
-
Repeatabilitysec
- 4
-
Weightkg
- 32
- Allowable work weight
-
(Allowable work kg weight with tailstock) kg - 25 (50)
-
kg
- 50
- Allowable load (When table clamped)
-
kg
- 600
-
FxL
Kgf-m - 8
-
FxL
Kgf-m - 16
- Code No.
- AT126R---
AT126L
-
Table diameter∅ mm
- 170
-
Center height mm
- 135
-
Spindle hole∅ mm
- 60H7/15
-
T slot widthmm
- 12H7
-
Guide block widthmm
- 14H7
- Allowable work weight
-
FANUCα
- α4iF
-
FANUCβ
- β8is
- MITSUBISHI
- HG54/HG104
- SIEMENS
- 1FK7060/ 1FK7042/ 1FK2205
- Gear ratio
- 36
- Max. rotation speed
（註Note）rpm - 83.3
- Min. increment
- 0.001°
-
Basic dynamic load rating kg・m
- 26
-
Clamp system
（空 P: Pneumatic / 油 H: Hydraulic）kg/cm² -
（空P）
5（油H）
10
-
Output torque at brakekgf・m
-
1340
-
Output torque at brakeN-m
-
127392
-
Indexing accuracysec
- 20
-
Repeatabilitysec
- 4
-
Weightkg
- 55
- Allowable work weight
-
(Allowable work kg weight with tailstock) kg - 100 (200)
-
kg
- 200
- Allowable load (When table clamped)
-
kg
- 800
-
FxL
Kgf-m - 1342
-
FxL
Kgf-m - 200
- Code No.
- AT200R
AT200L
-
Table diameter∅ mm
- 200
-
Center height mm
- 160
-
Spindle hole∅ mm
- 60H7/45
-
T slot widthmm
- 12H7
-
Guide block widthmm
- 18H7
- Allowable work weight
-
FANUCα
- α4iF
-
FANUCβ
- β8is
- MITSUBISHI
- HG104
- SIEMENS
- 1FK7060/ 1FK2206
- Gear ratio
- 36
- Max. rotation speed
（註Note）rpm - 83.3
- Min. increment
- 0.001°
-
Basic dynamic load rating kg・m
- 26
-
Clamp system
（空 P: Pneumatic / 油 H: Hydraulic）kg/cm² -
（空P）
5（油H）
20
-
Output torque at brakekgf・m
-
1340
-
Output torque at brakeN-m
-
127392
-
Indexing accuracysec
- 20
-
Repeatabilitysec
- 4
-
Weightkg
- 65
- Allowable work weight
-
(Allowable work kg weight with tailstock) kg - 100 (200)
-
kg
- 200
- Allowable load (When table clamped)
-
kg
- 800
-
FxL
Kgf-m - 1342
-
FxL
Kgf-m - 200
